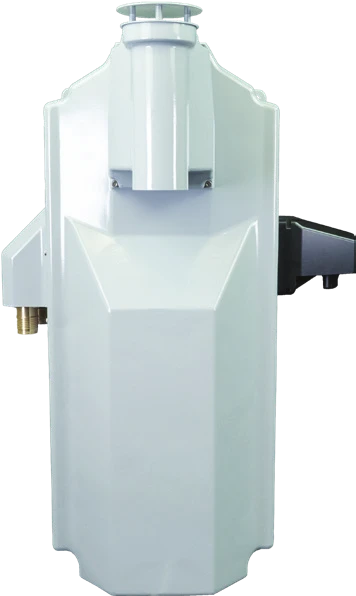

Proengin AP4C-FB
24/7 Chemical & Biological Detection System
A mounted detector for gas and aerosol that provides continuous 24/7 monitoring for land or naval assets. Chemical and biological detection take place simultaneously in one two-in-one sensor, so there is no mode to switch, and alarm and sampling are fully automatic, with no action required from the operator.
Two sensing channels, one housing
Proengin describes the AP4C-FB as a two-in-one sensor: chemical and biological detection take place simultaneously, so there is no need to switch between the biological and chemical mode. Here is what each side covers.
Gas & aerosol
A broad range of conventional and unconventional chemical threats, including chemical warfare agents, toxic industrial material and non-traditional agents such as Novichok.
- Chemical sensitivity
- sub-ppm range
Detection
- All nerve agents
- All blister agents
- All blood agents
- All NTA such as Novichok
- Choking agents
- Numerous toxic industrials
Simultaneous · no mode switching
- Flame spectrometryTechnology
- No library / No filtersKey feature
- Combined chem-bio detectionKey feature
Biological particles
Biological threats covered alongside the chemical ones: virus, bacteria and spore, monitored at the same time as the chemical channel.
- Biological sensitivity
- 2-10 micron particles
Detection
- Virus
- Bacteria
- Spore
Detection, not identification. The biological side is specified by particle size (2-10 micron particles); it detects these threats and does not identify or name a specific biological agent.
- 01
Sample
External & airtight sampling, running 24/7.
- 02
Detect
Chemical and biological detection take place simultaneously.
- 03
Alarm
Alarm and sampling is fully automatic and requires no action from the operator.
- 04
Record
Internal memory, 530 hours loop recording.
This combined design results in lower procurement costs and less system complexity.Proengin
On deck or on site
Proengin built the AP4C-FB for continuous 24/7 monitoring of land or naval assets. The photos below are illustrative only.
Illustrative imageLand & naval
- Land and naval platform
- Capital ship
- Fireboat
Illustrative imageSites & transit
- Strategic site
- Critical infrastructure
- Transportation hub
- Mass transit
Built to mount, wired to report
Proengin lists flexible & easy integration among the key features. These are the numbers an integrator needs.
Communication
RS-485 interface
Data storage
Internal memory, 530 hours loop recording
Sampling
External & airtight sampling
Technology
Flame spectrometry
Kit options
AP4C-FB system
Main detector with visualization and control module (VCM).
AP4C-FB detector
Main detector without visualization and control module (VCM).
Proengin offers deliverables from full system integration to ready to mount kit, plus integration of the AP4C-FB system to the end-user platform and prepaid maintenance and extended warranty options available upon initial acquisition. These are Proengin offerings; request a quote to discuss your requirement.
Fixed, chem-only or handheld
The AP4C-FB is not the same unit as the AP4C-F or the handheld AP4C. The FB adds biological detection to a fixed housing; the F is the chemical-only fixed version; the AP4C is the handheld chemical detector.
AP4C-FB
Combined chem-bio detection in one housing for land or naval assets.

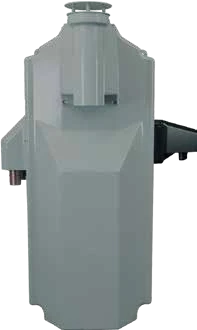

AP4C-F
The chemical-only fixed variant of the same housing family, for when biological detection is not required.

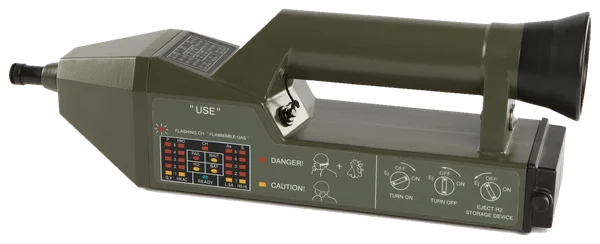

AP4C
Proengin lists the AP4C kit, a mobile handheld detector with gas and liquid sampling capability, as an accessory for dismounted personnel.
AP4C-FB specifications
| Detection | |
|---|---|
| Technology | Flame spectrometry |
| Detection range | CWA, TICs & TIMS, NTAs, Novichok, Binary agent, Precursor, Virus, Bacteria, Spore |
| Chemical sensitivity | sub-ppm range |
| Biological sensitivity | 2-10 micron particles |
| Detection list | |
| Chemical |
|
| Biological |
|
| Operation | |
| Monitoring | 24/7 continuous detection |
| Alarm & sampling | Fully automatic; requires no action from the operator |
| Power & data | |
|---|---|
| Communication | RS-485 interface |
| Data storage | Internal memory, 530 hours loop recording |
| Key features | |
| Sampling | External & airtight sampling |
| Integration | Flexible & easy integration |
| Dimensions & environment | |
|---|---|
| Height | 606mm / 23.85” |
| Width | 400mm / 15.75” |
| Conditions | Performs under harsh conditions (dust, humidity, temperature) |
| Kit options (Proengin) | |
|---|---|
| AP4C-FB system | Main detector with visualization and control module (VCM) |
| AP4C-FB detector | Main detector without visualization and control module (VCM) |
| Accessories & services (Proengin) | |
| AP4C kit | Mobile handheld detector with gas and liquid sampling capability for dismounted personnel (AP4C page) |
| Integration | Integration of the AP4C-FB system to the end-user platform |
| Maintenance | Prepaid maintenance and extended warranty options available upon initial acquisition |
Documents and support
AP4C-FB datasheet
Two-page product datasheet.
ServiceRepair Depot
OEM-certified service and support on every product we deliver. When a repair or calibration falls outside our in-house scope, we coordinate directly with the third-party manufacturer and manage the logistics end to end.
RelatedAP4C-F
Need chemical detection only? See the fixed, chemical-only AP4C-F.
Questions about the AP4C-FB
Do I have to switch between chemical and biological mode?
Does the AP4C-FB identify biological agents?
How is the AP4C-FB different from the AP4C-F?
What does the operator have to do when it alarms?
What data connections does it have?
Does it come with a display or control module?
