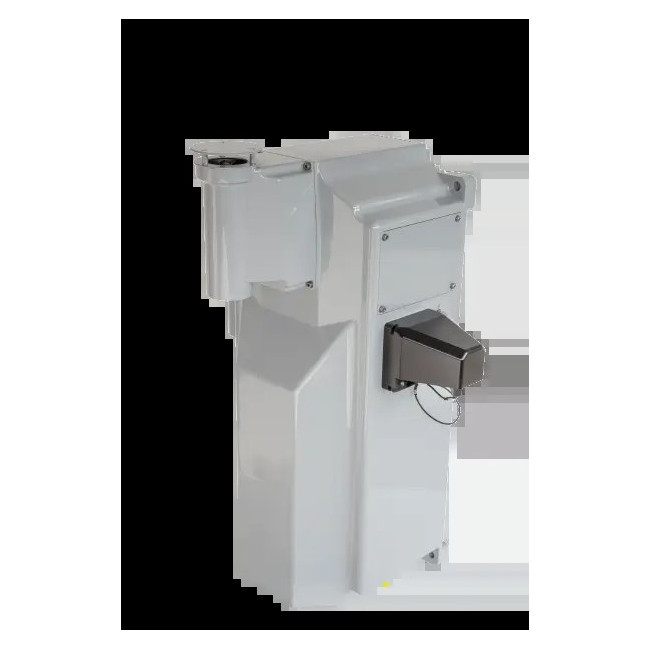

Proengin AP4C-F
The AP4C-F is a chemical detector for gas and aerosol that provides continuous 24/7 monitoring for land or naval assets. It can detect a broad range of conventional and unconventional threats, from chemical warfare agents and toxic industrial chemicals to homemade terrorist mixtures and nontraditional agents, with fully automatic alarm and sampling that requires no action from the operator.
- SensingHydrogen Flame Spectrometry
The AP4C-F is designed to withstand the harsh environment of naval operation. Proengin states it is not sensitive to humidity and salt spray, and that alarm and sampling are fully automatic, requiring no action from the operator.
According to Proengin, it is a combat proven system which has been tested and is in use with several navies, first responder fireboats, as well as on buildings and key infrastructure worldwide.
- Naval platforms
- Strategic sites
- Military shelters
- Transportation hub
- Mass transit
Illustrative photos; they do not show the detector.
From sampling point to control station
A handheld goes where an operator carries it. The AP4C-F stays put: Proengin offers options from full system integration to a ready to mount kit, for land or naval assets, with the detector sampling continuously and reporting over RS485 to a third-party solution or Proengin software solution.
- 01Sample
External & airtight sampling
Sampling runs on its own: fully automatic alarm and sampling requiring no action from the operator.
- 02Analyze
Continuous & simultaneous detection
Hydrogen Flame Spectrometry covers gas and aerosols, with detection results within seconds, according to Proengin.
- 03Alarm
Alarms set to your requirement
Alarms are set at the factory to the customer's needs. Mode: instant concentration or dose.
- 04Report
Into your control system
RS485 to a third-party solution or Proengin software solution, with a built in 32Mbit flash memory keeping around 530h of data logging.
Makes its own hydrogen
The AP4C-F senses by Hydrogen Flame Spectrometry, and its H₂ is produced through an embedded electrolyzer. Proengin rates that at 28 days H₂ autonomy on 1 water bottle.
-
Input
1 water bottle
28 days H₂ autonomy on 1 water bottle.
-
On board
Embedded electrolyzer
H₂ produced through embedded electrolyzer, inside the detector.
-
Sensing
Hydrogen flame spectrometry
The sensing technology behind detection of CWA (including 4th generation), TIC / TIM, gas and aerosols.
-
Response
Quick start-up
Proengin lists quick start-up and response time among its key features.
(non condensing) @ 55°C (131°F)
-38°F to +160°F
Rugged design for field use and to withstand harsh environments (dust, humidity, temperature), and designed to sustain marine application.
No library. No filters.
Proengin describes the AP4C-F as able to detect a broad range of conventional and unconventional threats. It works with no library and no filters, providing continuous & simultaneous detection of gas and aerosol threats.
Chemical warfare agents
Toxic industrial chemicals
Homemade terrorist mixtures
Nontraditional agents
- Detection
- CWA (including 4th generation), TIC / TIM, Gas, aerosols
- Mode
- Instant concentration or dose
- Sensing
- Hydrogen Flame Spectrometry
- Alarms
- Factory configuration based on customer needs
Flexible & easy integration
Proengin states that, based on the initial requirement, it offers various options of deliverable, from full system integration to a ready to mount kit. Options are available; tell FarrWest about your vessel or site when you request a quote.
RS485 output
Connectivity is RS485 to a third-party solution or Proengin software solution.
Turnkey integration
Proengin states it does offer turnkey CBRN integration solutions.
Warranty & maintenance
Warranty is 1 year. Proengin notes that prepaid maintenance and extended warranty options are available upon initial acquisition.
Fixed, handheld, or chem + bio
The AP4C-F is not the handheld AP4C. It is a fixed, mounted system for 24/7 monitoring. Proengin also offers a handheld for dismounted personnel, and the AP4C-FB adds biological detection in the same housing family.
Proengin AP4C
A handheld detector with gas and sampling capability for dismounted personnel.
View AP4C
AP4C-F
Continuous 24/7 chemical monitoring for land or naval assets. Gas and aerosols.
You are here
AP4C-FB
Same housing family with added biological detection (virus, bacteria, spore).
View AP4C-FBAP4C-F specs
| Detection | |
|---|---|
| Sensing technology | Hydrogen Flame Spectrometry |
| Detection |
|
| Mode | Instant concentration or dose |
| Alarms | Factory configuration based on customer needs |
| Hydrogen | |
|---|---|
| H₂ running time |
|
| Environment | |
|---|---|
| Storage temperature | -39°C to +71°C / -38°F to +160°F |
| Operating humidity | 93% HR (non condensing) @ 55°C (131°F) |
| Environmental conditions | Tested against heavy rain, salt, fog, ice & freeze |
| Data & connectivity | |
|---|---|
| Data logging | Built in 32Mbit flash memory; around 530h data logging capability |
| Connectivity | RS485 to a third-party solution or Proengin software solution |
| Compliance & warranty | |
| Regulation / performance test |
|
| Warranty | 1 year |
Downloads & support
AP4C-F datasheet
Two-page product datasheet.
ServiceFarrWest Repair Depot
OEM-certified service and support on every product we deliver. When a repair or calibration falls outside our in-house scope, we coordinate directly with the third-party manufacturer and manage the logistics end to end.
RelatedAP4C-FB
Need biological detection too? See the chemical and biological version in the same housing family.
Common questions
Is the AP4C-F the same as the handheld AP4C?
What does the AP4C-F detect?
Does someone need to operate it?
How does it get hydrogen for flame spectrometry?
How does it connect to a monitoring system?
What environment is it built for?
What warranty comes with it?
Is there a version that also detects biological threats?
