Stand-alone use or interface to WinELD™ Dose Management Software
-
Display of Session and Assignment doses and dose reset capability
-
EIA RS-232C serial or optional 10Base-T internal Ethernet LAN interface
-
Back-up batteries and internal buffer memory for securing the operation in all conditions
-
Rugged construction with heavy duty keypad
-
Wall mounting option
-
PTB approved configuration available
DBR-1 DIS Dosimeter Reader
$0.00

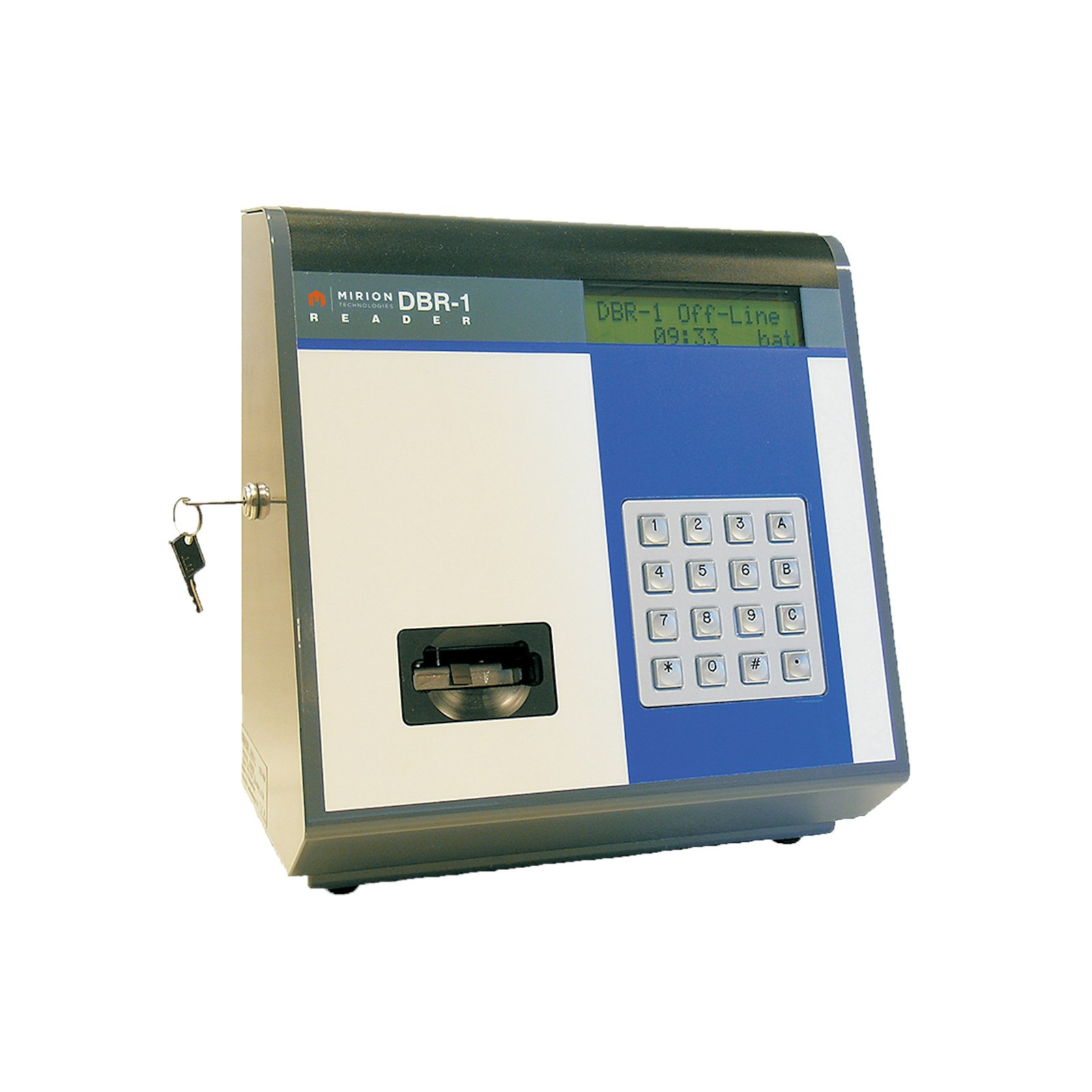

The DBR-1 DIS Dosimeter Reader by Mirion Technologies is a low-cost badge reader for radiation safety professionals that displays dose measurements in seconds.
The DBR-1 Dosimeter Reader is designed to read DIS-1, DIS-1H3 and EDIS-1 dosimeters. Simply insert the dosimeter badge into the reader head slot for dose read-outs. The design prevents incorrect insertion. In seconds, Hp(10), Hp(0.07), Hp(3) or H*(10) doses are displayed and stored in buffer memory. Supports stand-alone use or interface with WinELD Dose Management Software. Features include display of session and assignment doses with reset capability, EIA RS-232C serial or optional 10Base-T Ethernet LAN interface, backup batteries, internal buffer memory, rugged construction with heavy duty keypad, wall mounting option, and PTB approved configuration availability.
Description
DBR-1 DIS Dosimeter Reader
The DBR-1 Dosimeter Reader is designed to read DIS-1, DIS-1H3 and EDIS-1 dosimeters. Simply insert the dosimeter badge into the reader head slot for dose read-outs. The design prevents incorrect insertion. In seconds, Hp(10), Hp(0.07), Hp(3) or H*(10) doses are displayed and stored in buffer memory. Supports stand-alone use or interface with WinELD Dose Management Software. Features include display of session and assignment doses with reset capability, EIA RS-232C serial or optional 10Base-T Ethernet LAN interface, backup batteries, internal buffer memory, rugged construction with heavy duty keypad, wall mounting option, and PTB approved configuration availability.
Features
Specifications
- Display
- 2×16 character alphanumeric LCD display with LED backlight, 9.5 mm (0.37 in) digits
- Keypad
- Heavy duty 16-key keypad
- Power Control
- Power on/off by key switch
- Serial/Network Interface
- EIA RS-232C serial port or optional 10Base-T internal Ethernet LAN adapter
- Mounting
- Table top mounting, Optional wall mounting kit
- Connector
- Gold plated connector for dosimeter reading
- Case
- Rugged metal case
- Size (WxHxD)
- 250 x 265 x 210 mm (9.84 x 10.43 x 8.27 in)
- Weight
- 8.5 kg (18.7 lbs)
- Operating Temperature
- from +10°C to +40°C (50°F to 104°F)
- Storage Temperature
- from -10°C to +60°C (14°F to 140°F)
- Humidity
- 90% RH (non condensing)
- Mains Voltage
- 100-240 VAC, 50-60 Hz, 0.2 A
- Back-up Battery
- 3 Ah, for minimum 16 h operation
- Compliance
- Complies with CE standard
- Dose Types
- Hp(10), Hp(0.07), Hp(3) and H*(10) doses
- Internal Memory
- Internal buffer memory for 256 off-line dose records
- Compatible Dosimeters
- DIS-1, DIS-1H3 and EDIS-1 dosimeters
