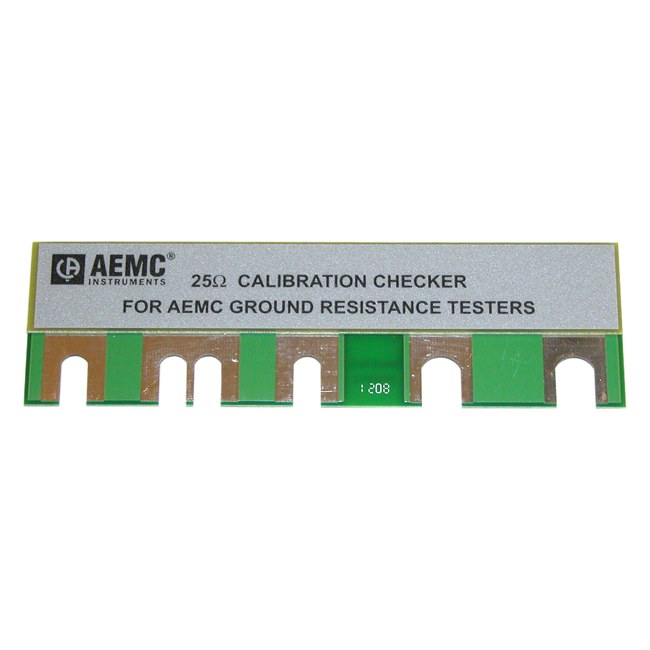

AEMC INSTRUMENTS Digital Ground Resistance Tester Model 4630 is a rugged, auto-ranging ground resistance meter designed for maintenance crews performing frequent testing in challenging conditions.

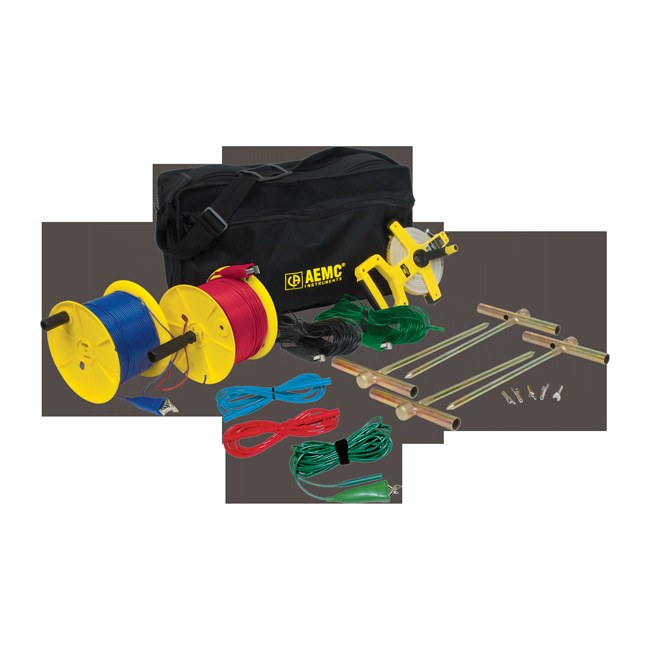

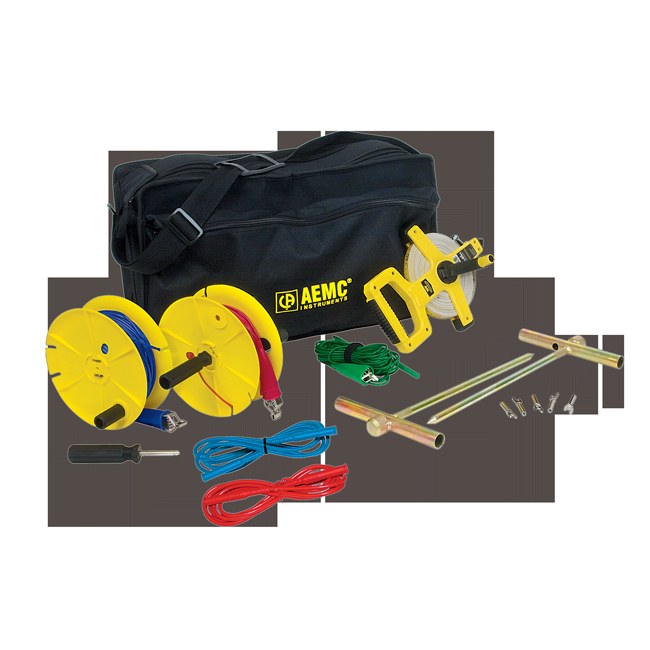

The Digital Ground Resistance Tester Model 4630 performs ground resistance and soil resistivity tests. This direct reading tester measures from 0 to 2000Ω and is auto-ranging, automatically seeking the optimum measurement range. The Model 4630 is rugged and easy-to-use, ideal for maintenance crews performing numerous tests. It exceeds mechanical and safety specifications for shock, vibration and drop tests per IEC standards. It rejects high levels of interference and operates under difficult conditions with high stray currents. Powered by 9.6V, 3.5 Ah NiMH rechargeable batteries with built-in recharge circuit from 120/230V 50/60Hz line, allowing testing while recharging.
| Performance | |
| Range (Auto-ranging) | 0 to 2000Ω |
| Resolution | 0.01 to 1Ω |
| Accuracy Typical | ±(2% Reading +1ct) |
| Response Time | 4 to 8 s for a stabilized measurement |
| Display | 200 counts, 7 segment LCD, backlight |
| Power | |
| Open Voltage | 42V peak |
| Withstanding Voltage | 250VAC or 100VDC |
| Maximum Auxiliary Rod Resistance Voltage Circuit | 50kΩ on all ranges |
| Power Source | 9.6V NiMH rechargeable battery pack; 120/230V 50/60Hz |
| Battery Life | 4500 15-seconds tests, low battery indicator |
| Weight (with Battery) | 7.38 lbs (3.35kg) |
| Physical | |
| Dimensions | 10.8 x 9.7 x 5.0" (273 x 247 x 127mm) |
| Approvals & Warranty | |
| Ingress Protection (IP) | IP 65 (closed); IP 63 (open) |
| Safety Compliance | EN 61557, EN 61010-1, 30V CAT III, Pollution Degree 2 |
| Other | |
| Test Current | 0.1 to 10mA |
| Operating Frequency | 128Hz square wave |
| Interference | Rejection to high levels of interference voltage (DC, 50/60Hz, harmonics) |
| Maximum Auxiliary Rod Resistance Current Circuit | 3kΩ @ 20Ω range; 30kΩ @ 200Ω range; 50kΩ @ 2000Ω range |
| Operating Temperature | 14° to 131°F (-10° to 55°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Relative Humidity | Up to 90% |
| EMC | EN 61326-1 |
