Transmits radiological information in pre-configured intervals to WRM3 or WRM2 Telemetry receivers
-
Low-power optimized for long battery life: >50 h for 900 MHz module and >100 h for 2.4 GHz module
-
900 MHz and 2.4 GHz Options
-
Module power supply: AAA battery or micro USB connector
-
Designed for ruggedness and durability
-
Waterproof IP67 (1 m 1 hour)
-
Backward compatible with WRM2 Telemetry System
-
Supplemental visual alarm indication (LED)
-
Connects to Vital® Supervision

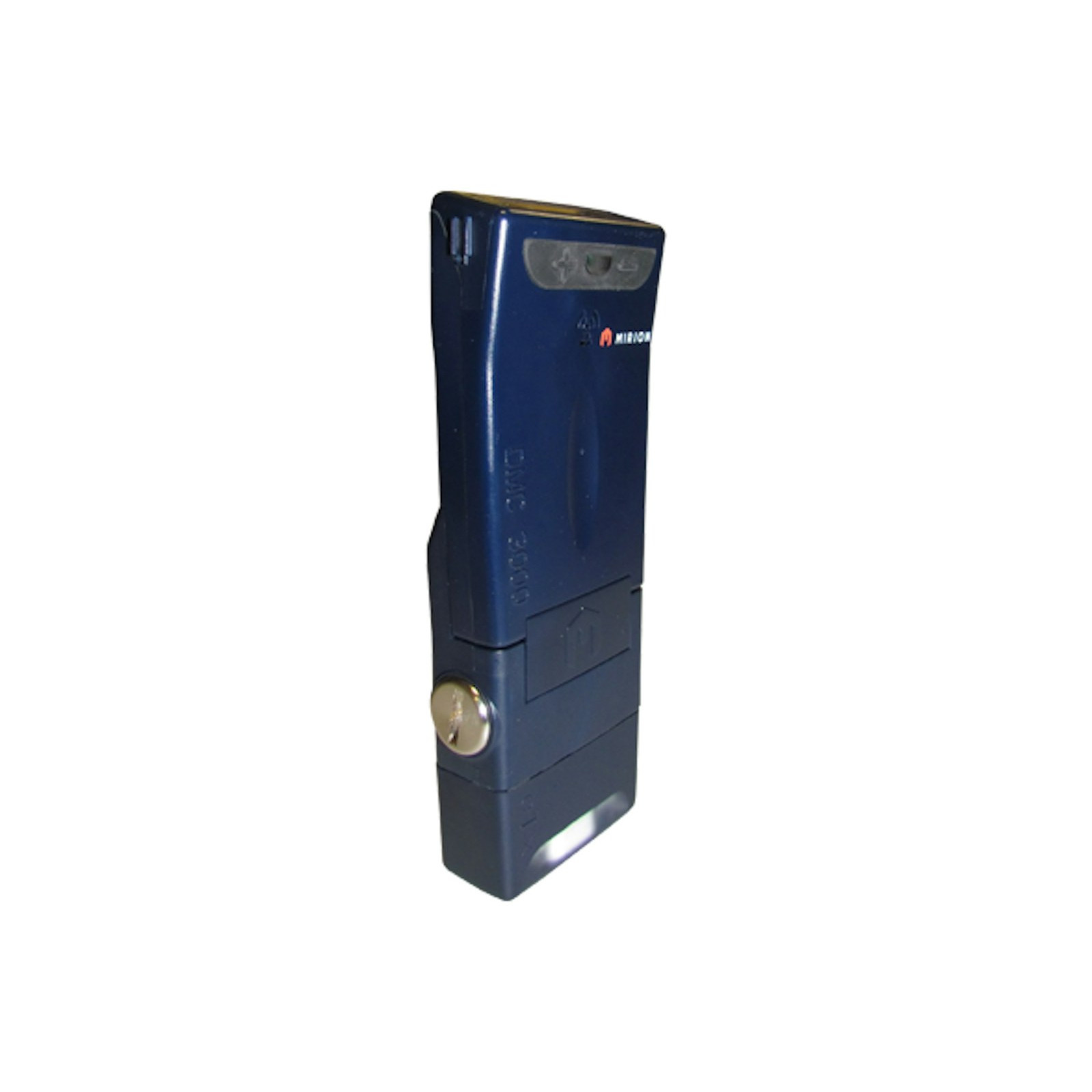

Enhanced Telemetry Module (eTx) for DMC 3000
$0.00
The Mirion Technologies Enhanced Telemetry Module (eTx) is a wireless dose data transmitter for DMC 3000 dosimeters that enables real-time remote monitoring via WRM3 and WRM2 systems.
The eTx is an advanced telemetry module designed for the DMC 3000 dosimeter. This add-on module transmits worker data including worker information, gamma radiological data, and setpoints to WRM3 and WRM2 Telemetry System components. The module features low-power optimization for extended battery life (>50 hours for 900 MHz, >100 hours for 2.4 GHz with industrial batteries), waterproof IP67 rating (1m/1 hour), and backward compatibility with WRM2 systems. Available in 900 MHz and 2.4 GHz options with AAA battery or micro USB power supply. Includes supplemental visual alarm indication via LED and connects to Vital Supervision software.
Description
Enhanced Telemetry Module (eTx) for DMC 3000
The eTx is an advanced telemetry module designed for the DMC 3000 dosimeter. This add-on module transmits worker data including worker information, gamma radiological data, and setpoints to WRM3 and WRM2 Telemetry System components. The module features low-power optimization for extended battery life (>50 hours for 900 MHz, >100 hours for 2.4 GHz with industrial batteries), waterproof IP67 rating (1m/1 hour), and backward compatibility with WRM2 systems. Available in 900 MHz and 2.4 GHz options with AAA battery or micro USB power supply. Includes supplemental visual alarm indication via LED and connects to Vital Supervision software.
Features
Specifications
- Transmit power output (900MHz)
- 125 mW
- Transmit power output (2.4 GHz)
- 10 mW – 63 mW
- Sensitivity (900 MHz)
- -106 dBm
- Sensitivity (2.4 GHz)
- -100 dBm
- Frequencies
- 900 (902-928) MHz or 2.4 ISM frequency range
- Transmission interval
- user configurable
- Internal Power
- AAA Alkaline Battery (LR03)
- External Power
- battery adaptor 1.5 V – 3.6 VDC, external power 100 – 220 VAC with USA and Euro adapter or through micro USB connector
- Case material
- Rugged, high impact polycarbonate-ABS case
- Dimensions with DMC 3000 (without clip)
- 141 x 60 x 21 mm (5.6 x 2.4 x 0.8 in)
- Dimensions with DMC 3000 (with standard clip)
- 141 x 60 x 28mm (5.6 x 2.4 x 1.1 in)
- Weight with DMC 3000 and battery
- 163 g (5,74 oz)
- Weight eTx module only
- 81 g (2.86 oz)
- Operating temperature range
- -10°C to 50°C (14°F to 122°F)
- Storage temperature range
- -20°C to 71°C (-4°F to 160°F)
- IP67 protection
- 1 m (39 in) during 1 hour
- EMC compliance
- compliant certificate number: DOC013768
- MIL STD 461-RS103
- exceeds 200 V/m from 80 MHz to 5 GHz
- Agency Approvals
- FCC (900 MHz) (USA), IC (Canada), and CE (Europe) (2.4 GHz)
- Battery life (900 MHz)
- >50 h
- Battery life (2.4 GHz)
- >100 h
