FSX (Flexible Scene Enhancement) technology for ultra-sharp thermal images
-
Maintenance-free uncooled microbolometer sensor
-
In-camera JPEG image storage (up to 200 images)
-
Large bright 4″ LCD display
-
Water resistant (IP67)
-
Withstands 2-meter drop onto concrete floor
-
Operates up to +260°C/+500°F for 5 minutes
-
3 large buttons for gloved operation
-
Simple user interface
-
NFPA fire-fighting mode
-
Search-and-rescue mode
-
Heat detection mode with automatic colorization of hottest 20%
-
Digital image storage and report generation capability
-
2-5-10 exclusive warranty (2 years on batteries, 5 years on camera, 10 years on detector)

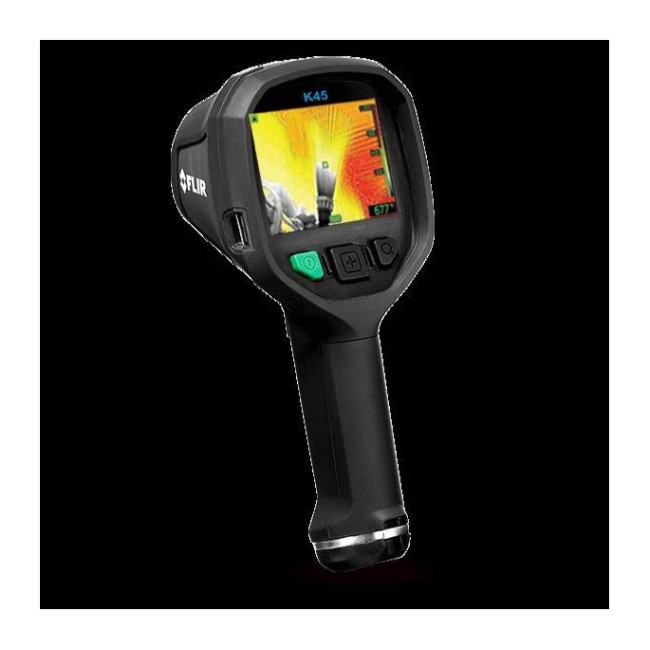

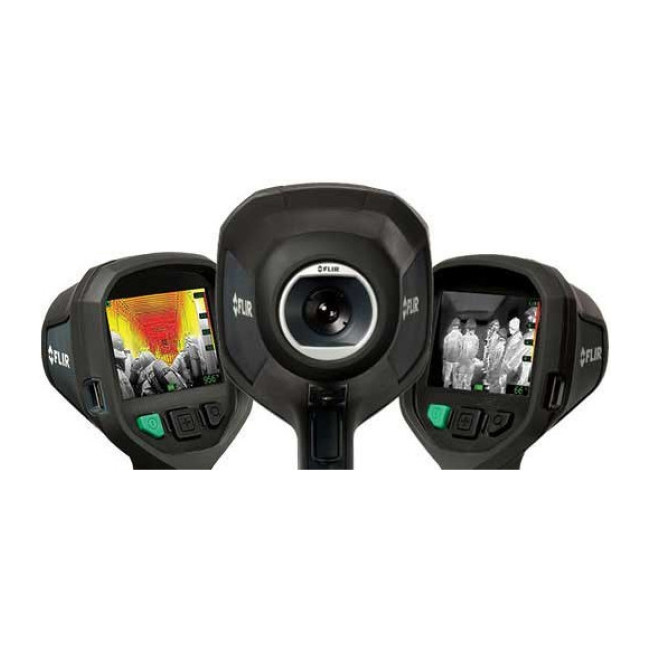

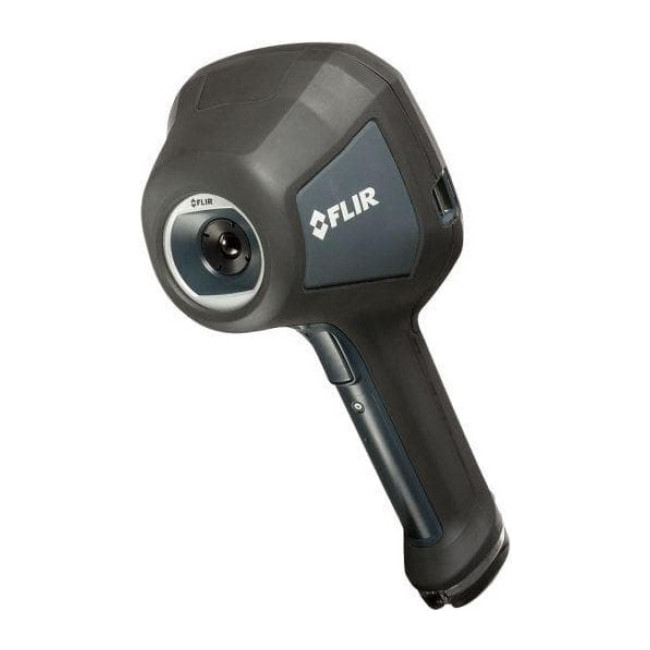

FLIR K45
$0.00
The FLIR K45 is a professional thermal imaging camera designed for fire rescue operations with a 240×180 resolution display and FSX enhancement technology.
In stock
Professional thermal imaging camera designed for fire rescue operations. Features uncooled microbolometer sensor producing 240 x 180 pixel images displayed on large 4″ LCD screen. Equipped with FSX™ Flexible Scene Enhancement technology for ultra-sharp images in low-contrast environments. Rugged construction withstands 2-meter drops, water-resistant (IP67), and operates up to +260°C/+500°F. Includes hard case, 2 Li-Ion batteries, charger, lanyard, neck strap, USB cable, and FLIR Tools Software. Protected by FLIR 2-5-10 Warranty (2 years batteries, 5 years camera, 10 years detector). In-camera JPEG storage for up to 200 images. Easy 3-button operation designed for gloved hands.
Description
FLIR K45
Professional thermal imaging camera designed for fire rescue operations. Features uncooled microbolometer sensor producing 240 x 180 pixel images displayed on large 4″ LCD screen. Equipped with FSX™ Flexible Scene Enhancement technology for ultra-sharp images in low-contrast environments. Rugged construction withstands 2-meter drops, water-resistant (IP67), and operates up to +260°C/+500°F. Includes hard case, 2 Li-Ion batteries, charger, lanyard, neck strap, USB cable, and FLIR Tools Software. Protected by FLIR 2-5-10 Warranty (2 years batteries, 5 years camera, 10 years detector). In-camera JPEG storage for up to 200 images. Easy 3-button operation designed for gloved hands.
Features
Specifications
- IR resolution
- 240 x 180 pixels
- Thermal sensitivity
- < 40 mK @ +30°C (+86°F)
- Contrast optimization
- Digital image enhancement using FSX
- Field of view (FOV) / focus
- 51° × 38° / fixed focus
- Image frequency
- 60 Hz
- Zoom
- 2x, digital zoom
- Focal Plane Array (FPA) / Spectral range
- Uncooled microbolometer / 7.5–13 µm
- Start-up time
- < 17 sec. (IR-image, no GUI)
- Start-up time from sleep mode
- < 4 sec.
- Image storage
- Up to 200 JPEG images on internal Flash Memory (co-dependent on the number of saved video clips)
- Display
- 4″ LCD, 320 × 240 pixels, backlit
- Image modes
- IR image: TI Basic NFPA fire-fighting mode / Black-and-white fire-fighting mode / Fire mode / Search-and-rescue mode / Heat detection mode / Thumbnail gallery
- Auto-range
- Yes, mode dependent
- Object temperature range
- –20 °C to +150 °C / -4 °F to +302 °F, 0 °C to +650 °C / 32 °F to +1,202 °F
- Accuracy
- ±4°C or ±4% of reading for ambient temperature, 10°C to 35°C / 50 °F to 95 °F
- Spotmeter
- 1
- Isotherm
- Yes, According to NFPA and mode dependent
- Automatic heat detection
- Heat detection mode (the hottest 20% of the scene is colorized)
- Color palettes
- Multiple palettes, mode dependent
- Regional adjustments
- Units, date and time formats
- Interfaces
- USB-mini
- USB
- USB Mini-B: Data transfer to and from PC / uncompressed colorized video
- Battery
- Li Ion, 4 hours operating time
- Charging system
- 2-bay charger, truck charger available
- Charging time
- 2 hours to 85% (3 hours and 25 minutes) capacity, charging status indicated by LED’s
- Charging temperature
- 0 °C to +45 °C / 32 °F to 113 °F
- Operating temperature range
- –20°C to +85°C (–4°F to +185°F) / +150°C (+302°F): 15 min / +260°C (+500°F): 5 min
- Storage temperature range
- –40 °C to +85 °C (-40 °F to +185 °F)
- Humidity (operating and storage)
- IEC 60068-2-30/24 h 95% relative humidity +25ºC to + 40ºC (+77ºF to +104ºF) / 2 cycles
- Relative humidity
- 95% relative humidity +25ºC to + 40ºC (+77ºF to +104ºF) non-condensing
- Encapsulation
- IP 67 (IEC 60529)
- Shock
- 25 g (IEC 60068-2-27)
- Vibration
- 2 g (IEC 60068-2-6)
- Drop
- 2.0 m / 6.6 ft., on concrete floor (IEC 60068-2-31)
- Camera weight, incl. battery
- <1,1 kg / 2.4lb
- Camera size (L × W × H)
- <120 × 125 × 280 mm / <4.7 x 4.9 x 11″
- Tripod mounting
- UNC ¼”-20
