Detection and location of radioactive and special nuclear materials
-
Real-time identification of radiation sources
-
512-channel gamma-ray spectrometer
-
Storage of up to 110 measured spectra
-
RS-232 port for data transmission to PC
-
1 m extension tube for detectors
-
Interchangeable detector modules for alpha, beta, gamma, and neutron radiation
-
Audio alarm with increasing pulse rate as detector approaches radiation source
-
Vibration alarm device for operation in environments unsuitable for audible alarms
-
Search mode for radiation source detection and location
-
Hermetic shockproof housing
-
Drop test rated (0.7 m on concrete)
-
Sea fog test compliance
-
Light weight and compact dimensions
PM1402M
$0.00

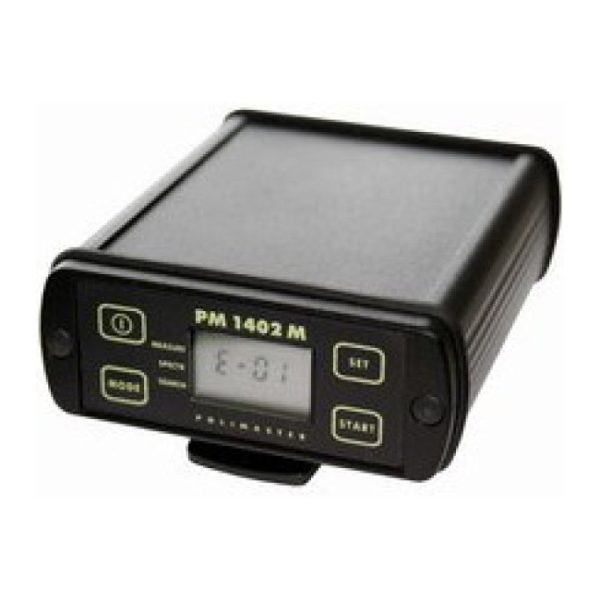

The POLIMASTER PM1402M is a portable radiation detection device for field personnel to detect, locate, and identify radioactive materials in real time.
The PM1402M is a multipurpose portable radiation detection device designed for field use to measure parameters of all types of ionizing radiation and to detect, locate and identify radioactive and special nuclear materials in real time. Features include a 512-channel gamma-ray spectrometer, nonvolatile memory for storage of up to 110 measured spectra, RS-232 port for PC data transmission, hermetic shockproof housing, and interchangeable detector modules (BD-01 through BD-05) for gamma, neutron, and alpha/beta radiation detection. Meets drop test (0.7m concrete) and sea fog test standards. IP67 protection rating. Operates on five AA NiCd rechargeable batteries with 20-100 hour runtime depending on detector configuration.
Description
PM1402M
The PM1402M is a multipurpose portable radiation detection device designed for field use to measure parameters of all types of ionizing radiation and to detect, locate and identify radioactive and special nuclear materials in real time. Features include a 512-channel gamma-ray spectrometer, nonvolatile memory for storage of up to 110 measured spectra, RS-232 port for PC data transmission, hermetic shockproof housing, and interchangeable detector modules (BD-01 through BD-05) for gamma, neutron, and alpha/beta radiation detection. Meets drop test (0.7m concrete) and sea fog test standards. IP67 protection rating. Operates on five AA NiCd rechargeable batteries with 20-100 hour runtime depending on detector configuration.
Features
Specifications
- Detector (BD-05)
- Proportional counter with a mica window
- Measurement range of alpha radiation flux
- 1-5×10⁵ cm⁻²min⁻¹
- Measurement range of beta radiation flux
- 10-10⁶ cm⁻²min⁻¹
- Cutoff energy range of beta radiation
- 0.15-3.5 MeV
- Sensitivity for alpha radiation (239Pu)
- 2 counts/cm²
- Sensitivity for beta radiation (90Sr+90Y)
- 0.5 counts/cm²
- Count rate indication for alpha radiation
- 1-25000 cps
- Count rate indication for beta radiation
- 1-14000 cps
- Flux threshold range alpha radiation
- 1-5×10⁵ cm⁻²min⁻¹
- Flux threshold range beta radiation
- 10-10⁶ cm⁻²min⁻¹
- Accuracy of alpha radiation measurement (5.15 MeV, 239Pu)
- ±(20+10/φ)%
- Accuracy of beta radiation measurement (90Sr+90Y)
- ±(20+100/φ)%
- Battery lifetime (BD-05)
- 20 h
- Weight (BD-05)
- 310 g
- Dimensions (BD-05)
- 64×40×118 mm
- Environmental temperature range
- -30 to +50°C
- Environmental humidity at 25°C
- up to 98%
- Power
- five ‘AA’ size NiCd rechargeable batteries
- Weight of processing unit
- 350 g
- Dimensions of processing unit
- 32×85×107 mm
- Weight of vibration alarm device
- 50 g
- Dimensions of vibration alarm device
- Ø10×46 mm
- Protection degree
- IP67
