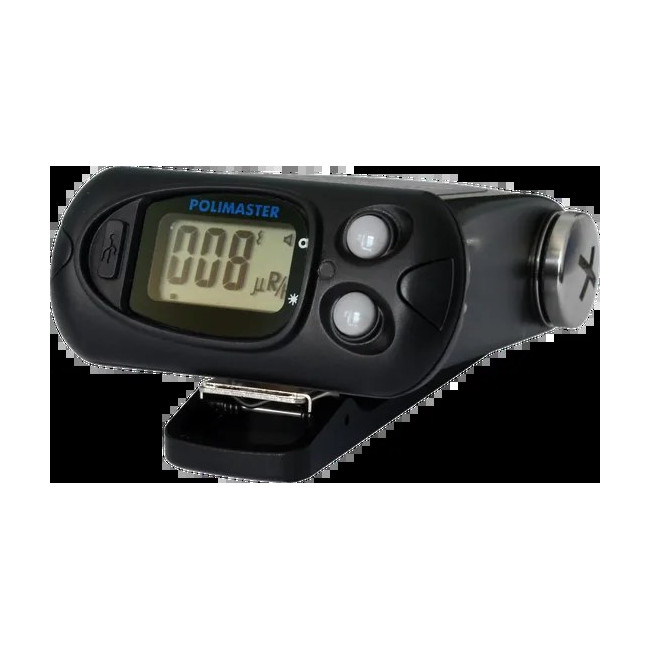

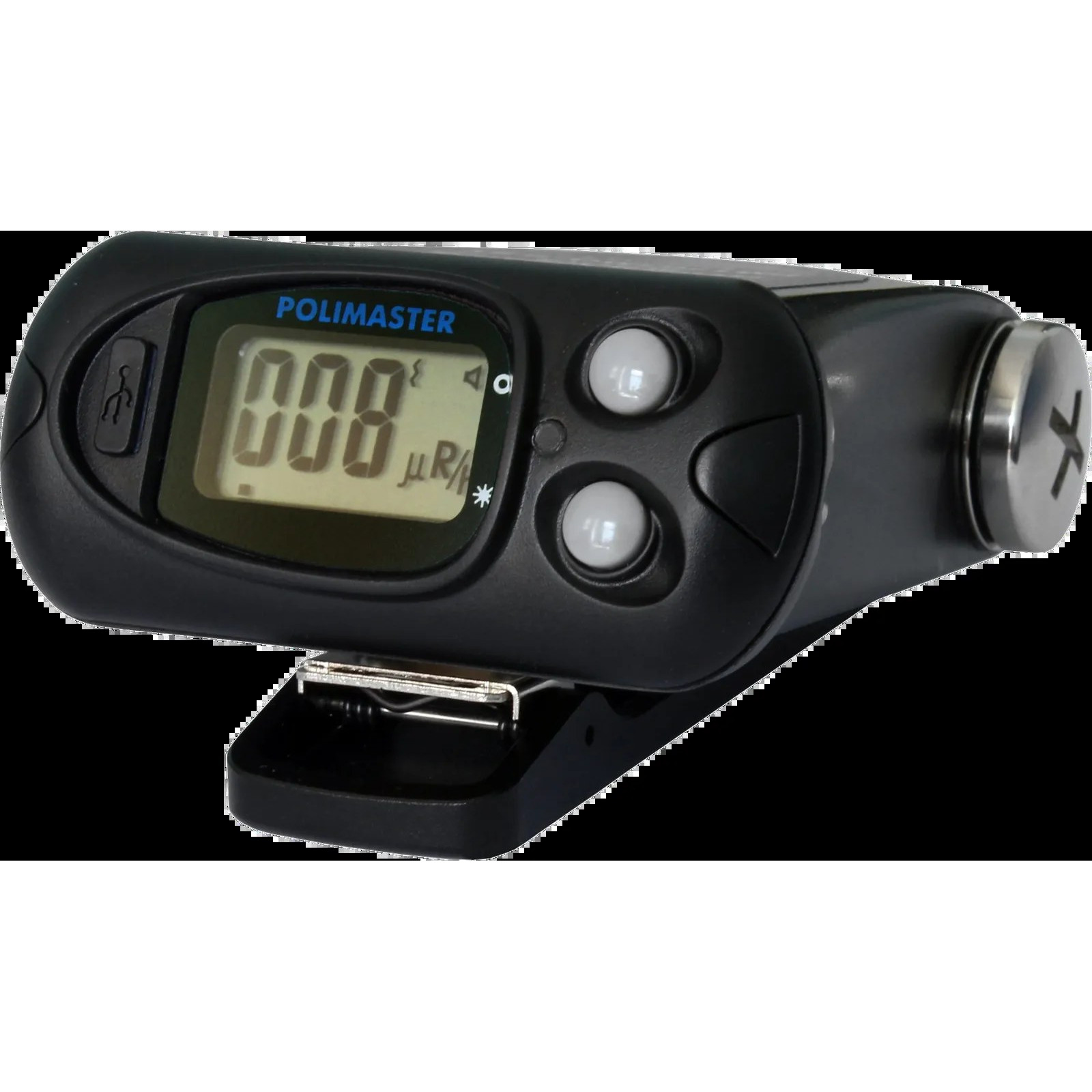

PM1703MO-II BT PRD/Dosimeter
The POLIMASTER PM1703MO-II BT is a Bluetooth-enabled personal radiation detector designed for first responders, customs, border control, and public safety agencies.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
- Dose measurement range
- 0.1 µSv to 10 Sv
- Battery lifetime
- 1000 h
- Ingress protection
- IP65
- Weight
- 200 g
- Dimensions
- 87 × 72 × 32 mm
Overview
The PM1703MO-II BT is a gamma-only personal radiation detector equipped with Bluetooth connectivity and a Geiger-Mueller counter for extended measurement of personal dose rate up to 200 mSv/h and personal dose up to 10 Sv. Features ANSI N42.32-2016 and IEC 62401:2017 compliance, NORM-suppression algorithm, color-coded alarms, audible/visual/vibration alerts, and operates in extreme temperatures from –40°C to 50°C. Includes 1000-hour battery life, IP65 hermetic case, and free Polismart® app for iOS/Android. Designed for customs, border control, HAZMAT teams, counter-terrorism, first responders, and public safety agencies.
- ANSI N42.32-2016 and IEC 62401:2017 compliance
- NORM-suppression algorithm for differentiating color-coded alarms
- Dedicated 0-9 scale mode with unitless dose rate indication
- Personal dose accumulation up to 10 Sv
- Extended dose rate measurement ranges up to 200 mSv/h
- Operation in extreme temperatures from –40 °C to 50 °C
- Long-life alkaline or rechargeable battery for 1000 hours
- Shockproof hermetic case IP65
- Audible, visual, and vibration alarms
- Free Polismart® iOS and Android app for advanced operation
- USB and Bluetooth communication
Specifications
| Performance | |
| Detector | CsI(Tl) SiPM, GM tube |
| Dose measurement range | 0.1 µSv to 10 Sv |
| Dose measurement accuracy | ± 20% |
| Dose rate measurement range | 0.1 µSv/h to 200 mSv/h |
| Dose rate measurement accuracy | ± (20 + 0.0025 / Ḣ) %, where Ḣ is the measured dose rate value in mSv/h |
| Energy range | 33 keV to 3.0 MeV (search); 60 keV to 1.33 MeV (measurement) |
| Gamma radiation sensitivity | 100 cps per µSv/h (137Cs); 500 cps per µSv/h (241Am) |
| Response time | 0.25 s |
| Alarms | visual, audible, vibration |
| Atmospheric pressure | 84 to 106.7 kPa |
| Power | |
| Power supply | one AA alkaline or rechargeable battery |
| Battery lifetime | 1000 h |
| Physical | |
| Dimensions | 87 × 72 × 32 mm |
| Weight | 200 g |
| Connectivity | |
| Memory | 2000 events |
| Approvals & Warranty | |
| Ingress protection | IP65 |
| Other | |
| Smartphone communication | Bluetooth 4.0 |
| PC communication | USB |
| Drop test | 1.5 m |
| Operating temperature | –40 °C to 50 °C |
| Humidity | up to 98 % at +35 °C |
| Mean service lifetime | 8 years |
