High sensitivity due to large He-3 tube
-
Excellent energy and angular response
-
Excellent gamma rejection
-
Thermal to 5 GeV energy range according to H*(10), ICRP 74
-
Close match to H*(10) behavior up to 5 GeV
-
No significant spill-over for gamma dose rates up to 1 Sv/h
-
Compatible with FHT 6020 area monitor and FH 40 G survey meter
FHT 762 Wendi-2
$0.00

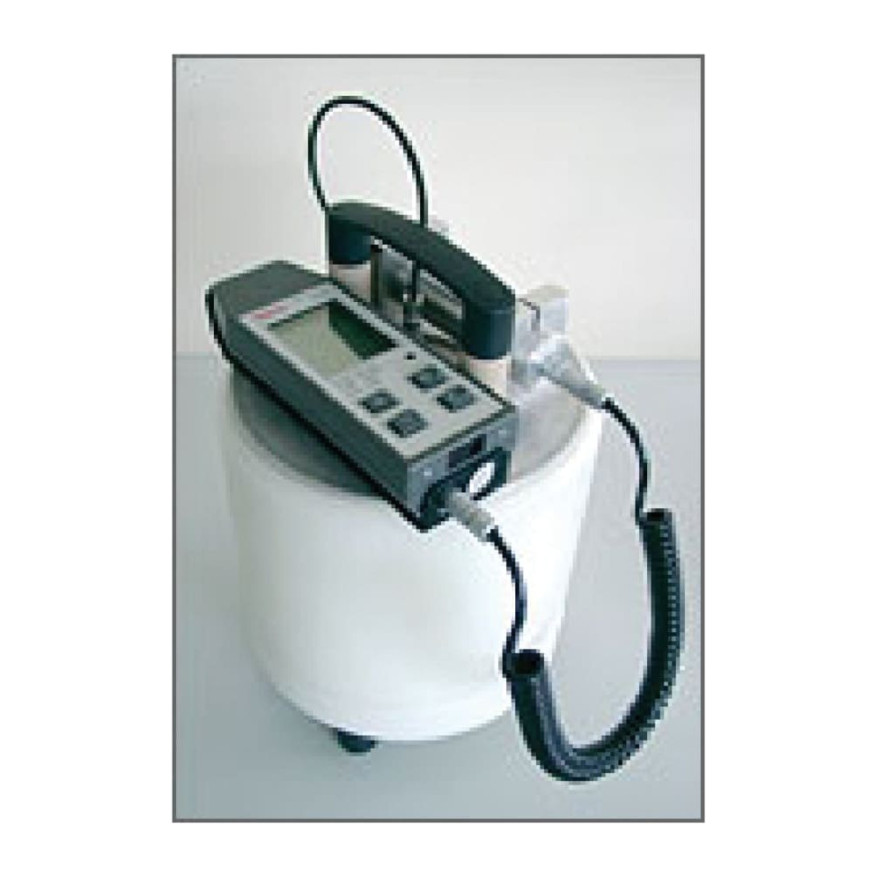

The Thermo Scientific FHT 762 Wendi-2 is a wide-energy neutron detector for radiation safety professionals monitoring thermal to 5 GeV neutron exposure.
Thermo Scientific™ FHT 762 Wendi-2 Wide-Energy Neutron Detector features high sensitivity and excellent energy and angular response provided by the WENDI-2 design originally developed at Los Alamos. Combines excellent energy response in the normal energy range up to 15 MeV with close match to H*(10) behavior up to 5 GeV. Thermal to 5 GeV energy range according to ICRP 74. High sensitivity due to large He-3 tube. Excellent gamma rejection with no significant spill-over for gamma dose rates up to 1 Sv/h. Compatible with FHT 6020 area monitor and FH 40 G survey meter.
Description
FHT 762 Wendi-2
Thermo Scientific™ FHT 762 Wendi-2 Wide-Energy Neutron Detector features high sensitivity and excellent energy and angular response provided by the WENDI-2 design originally developed at Los Alamos. Combines excellent energy response in the normal energy range up to 15 MeV with close match to H*(10) behavior up to 5 GeV. Thermal to 5 GeV energy range according to ICRP 74. High sensitivity due to large He-3 tube. Excellent gamma rejection with no significant spill-over for gamma dose rates up to 1 Sv/h. Compatible with FHT 6020 area monitor and FH 40 G survey meter.
Features
Specifications
- Catalog Number
- FHT762WENDI2
- Description
- FHT 762 Wendi-2
- Diameter (English)
- 9 in.
- Diameter (Metric)
- 320 mm
- Height (English)
- 12.6 in.
- Height (Metric)
- 230 mm
- Weight (English)
- 29.8 lb.
- Weight (Metric)
- 13.5 kg
- Energy Range
- 25 meV to 5 GeV
- Sensitivity
- 0.84 cps/(µSv/h) Cf-252
- Gamma sensitivity
- 1 to 5µSv/h at 100 mSv/h, 662keV
- Linearity
- ±20% (Angular dependence: ±20% in all directions)
- Operating Temperature (Metric)
- −30°C to 50°C
- Humidity
- Up to 90%, Non-Condensing
- Pressure
- 500 to 1500 hPa
- Certifications/Compliance
- ICRP 74 / FHT 6020 area monitor, FH 40 G survey meter
- Unit Size
- Each
