Hertzian communication with dosimeters
-
No directional alignment required
-
3 Indicator LEDs for operation and access control
-
Manageable digital inputs/outputs
-
DSP based digital process
-
Compatible with the DMC 2000 and SOR families as well as the DMC 3000 dosimeter
-
Compatible with software packages: DosiCare, DosiFFR, DMCUser and LDMAccess
-
Desk version (D) configuration

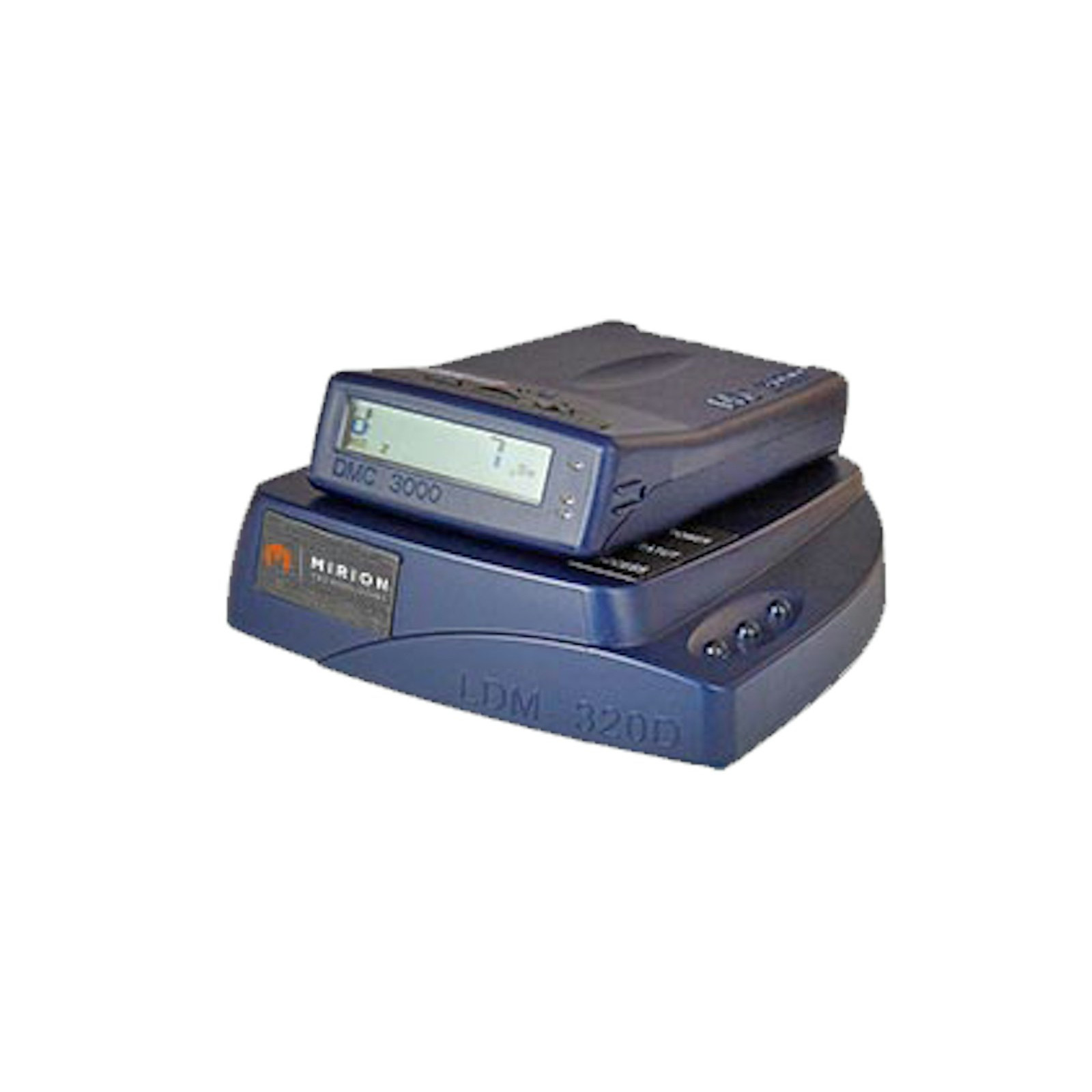

LDM 320D Hands-Free Dosimeter Reader
$1,414.00
The Mirion Technologies LDM 320D is a hands-free dosimeter reader for exchanging dose data with DMC and SOR dosimeters via PC software.
The LDM 320D is a compact, low-cost hands-free dosimeter reader that operates using software packages installed on a computer (PC) and communicates with DMC 3000, DMC 2000, and SOR families of dosimeters in dosimeter-free data exchange mode. Features Hertzian communication with no directional alignment required, 3 indicator LEDs for operation and access control, manageable digital inputs/outputs, and DSP-based digital processing. Compatible with DosiCare, DosiFFR, DMCUser, and LDMAccess software packages. Available in desk-mounted (D) or wall-mounted (W) versions. When used with access control software, it turns on or switches off the dosimeter. When used with DMC User software, it operates as an interface to read and write internal data of dosimeters.
Description
LDM 320D Hands-Free Dosimeter Reader
The LDM 320D is a compact, low-cost hands-free dosimeter reader that operates using software packages installed on a computer (PC) and communicates with DMC 3000, DMC 2000, and SOR families of dosimeters in dosimeter-free data exchange mode. Features Hertzian communication with no directional alignment required, 3 indicator LEDs for operation and access control, manageable digital inputs/outputs, and DSP-based digital processing. Compatible with DosiCare, DosiFFR, DMCUser, and LDMAccess software packages. Available in desk-mounted (D) or wall-mounted (W) versions. When used with access control software, it turns on or switches off the dosimeter. When used with DMC User software, it operates as an interface to read and write internal data of dosimeters.
Features
Specifications
- Length (LDM 320D)
- 109 mm (4.3 in)
- Width (LDM 320D)
- 100 mm (3.9 in)
- Depth (LDM 320D)
- 29 mm (1.1 in)
- Weight (LDM 320D)
- 150 gr (5.3 oz)
- Length (LDM 320W)
- 157 mm (6.2 in)
- Width (LDM 320W)
- 99 mm (3.9 in)
- Depth (LDM 320W)
- 75 mm (2.9 in)
- Weight (LDM 320W)
- 400 gr (14.1 oz)
- Operating temperature
- 0°C to +50°C (32°F to 122°F)
- Storage temperature
- -10°C to +60°C (+14°F to 140°F)
- Humidity
- 90% HR (without condensation)
- IP LDM 320D
- IP52
- IP LDM 320W
- IP30
- Communication frequency
- 125 kHz
- Nominal range DMC 2000 / SOR (LDM 320D)
- 25 cm (9.8 in) maximum
- Nominal range DMC 3000 (LDM 320D)
- 5 cm (1.9 in) maximum
- Low range configuration reduction
- about 5 cm (1.9 in)
